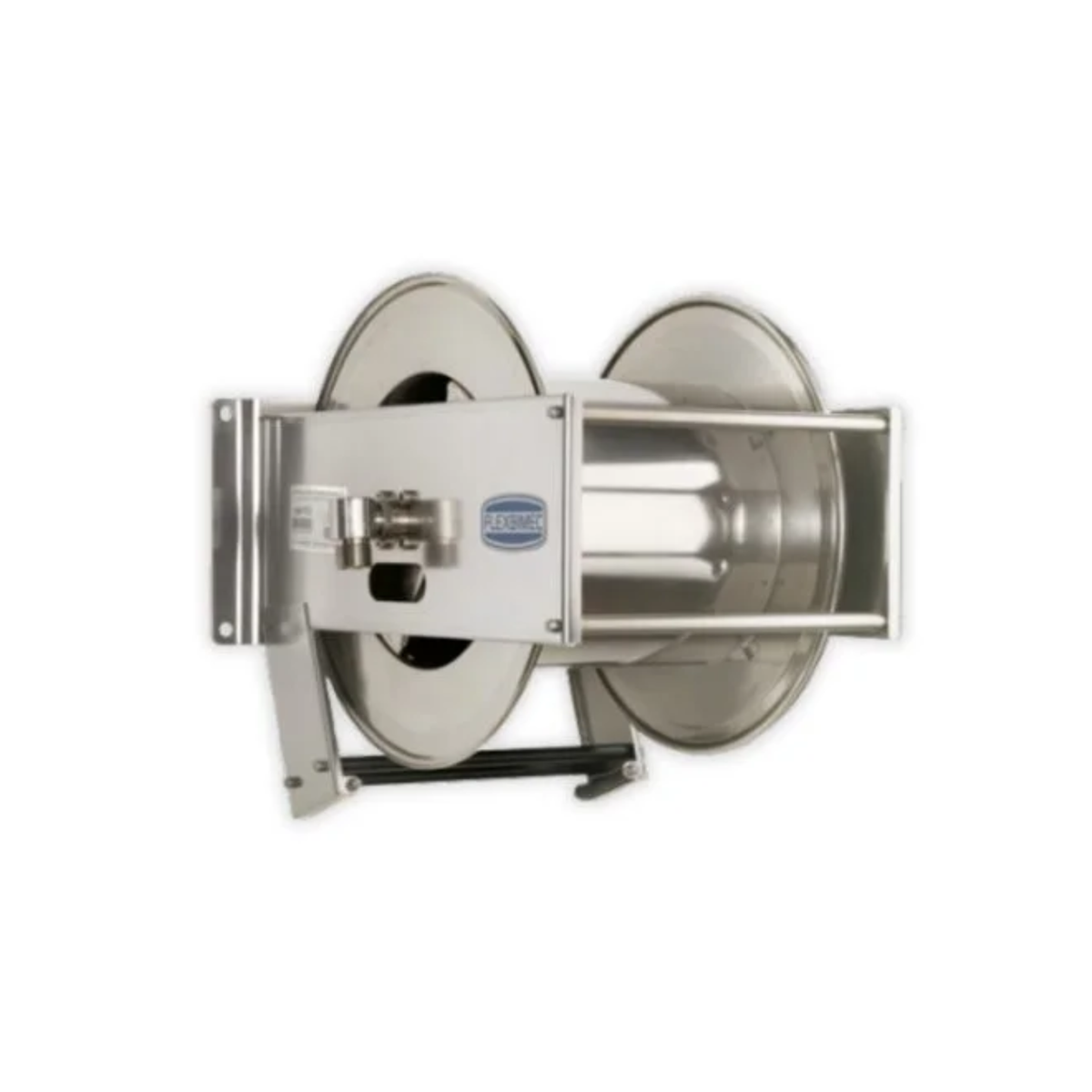

Flexbimec 1" or 3/4" Stainless Steel Retractable Hose Reels

The Flexbimec Stainless Steel Retractable Hose Reel range is designed for professional applications requiring high flow rates, automatic hose storage and excellent corrosion resistance.

Manufactured from high-grade AISI 304 stainless steel, these heavy-duty reels are particularly well suited to demanding industrial, agricultural, commercial and workshop environments.

Available in three sizes, the range can accommodate from 8 to 25 metres of 1" hose, or up to 30 metres of 3/4" hose.

***Hose Not Included***

Key Features

• High-grade AISI 304 stainless steel construction
• Spring retractable automatic rewind
• Hose locking at the required working length
• 1" BSP inlet
• 90° inlet swivel
• 1" BSP swan neck outlet
• Maximum working pressure: 20 Bar
• Maximum temperature: 100°C
• Four heavy-duty hose roller guides
• Fixed-arm design
• Heavy-duty stainless steel mounting plate
• Suitable for wall or floor mounting
• Suitable for 1" and 3/4" hose
• Designed for high-flow applications

Available Models & Hose Capacity

FL9529

• Up to 8 metres of 1" hose
• Up to 10 metres of 3/4" hose

FL9525

• Up to 15 metres of 1" hose
• Up to 18 metres of 3/4" hose

FL9536

• Up to 25 metres of 1" hose
• Up to 30 metres of 3/4" hose

The three reel sizes allow the system to be configured around the required hose diameter, working area and flow requirements.

AISI 304 Stainless Steel Construction

Manufactured from premium AISI 304 stainless steel, these Flexbimec reels are designed for long-term professional use in demanding environments.

Stainless steel provides excellent resistance to corrosion, moisture and harsh working conditions, making these reels particularly suitable for installations where equipment is regularly exposed to water or frequent cleaning.

The stainless steel construction also provides an easy-to-maintain, professional finish for industrial and commercial installations.

Automatic Rewind & Hose Locking

Each reel features a heavy-duty spring retractable automatic rewind mechanism, making it quick and convenient to deploy and store large-diameter hose.

Simply extend the required amount of hose and the reel will lock it at the required working length. Once the task is complete, release the locking mechanism and the reel will automatically retract the hose neatly back onto the drum.

Four heavy-duty hose roller guides help the hose feed smoothly on and off the reel, reducing unnecessary wear while helping to prevent twisting, kinking and tangling.

High-Flow 1" Connections

The reels feature a 1" BSP inlet with a 90° swivel and a 1" BSP swan neck outlet, making them particularly suitable for high-flow applications.

The swivel inlet allows the reel drum to rotate freely while maintaining the supply connection, helping to prevent twisting and unnecessary strain on the hose and supply pipework.

Versatile Hose Reel Range

Depending on the hose, seals and other wetted components fitted, these stainless steel reels can be configured for a variety of professional applications, including:

• Water
• Diesel
• Oil
• Compressed air
• High-flow washdown systems
• Agricultural applications
• Workshops and garages
• Machinery and equipment servicing
• Industrial fluid transfer
• Commercial and industrial facilities

Choosing the Correct Reel

For compact installations, the FL9529 accommodates up to 8 metres of 1" hose or 10 metres of 3/4" hose.

For medium-sized working areas, the FL9525 increases the capacity to 15 metres of 1" hose or 18 metres of 3/4" hose.

For larger facilities requiring maximum working range, the FL9536 accommodates up to 25 metres of 1" hose or 30 metres of 3/4" hose.

Why Choose a Stainless Steel Hose Reel?

• Excellent corrosion resistance
• Ideal for wet and frequently washed environments
• Heavy-duty construction for professional use
• Easy to clean and maintain
• Long service life in demanding environments
• Professional stainless steel appearance
• Excellent option for agricultural, industrial and commercial installations

Important: The reel specification alone does not determine fluid compatibility. The hose, seals and all wetted components must be selected to suit the specific fluid, operating pressure and temperature of the application.
