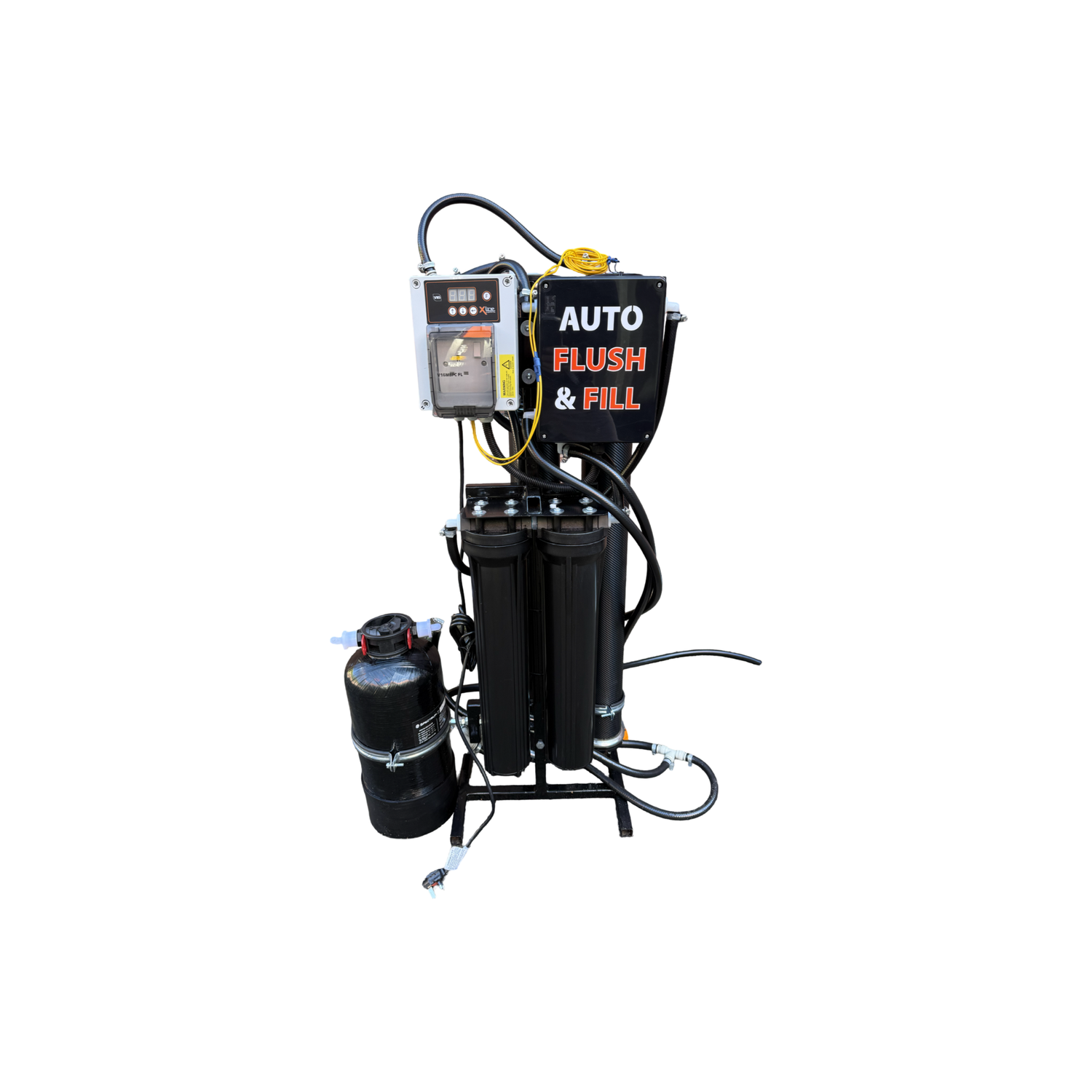

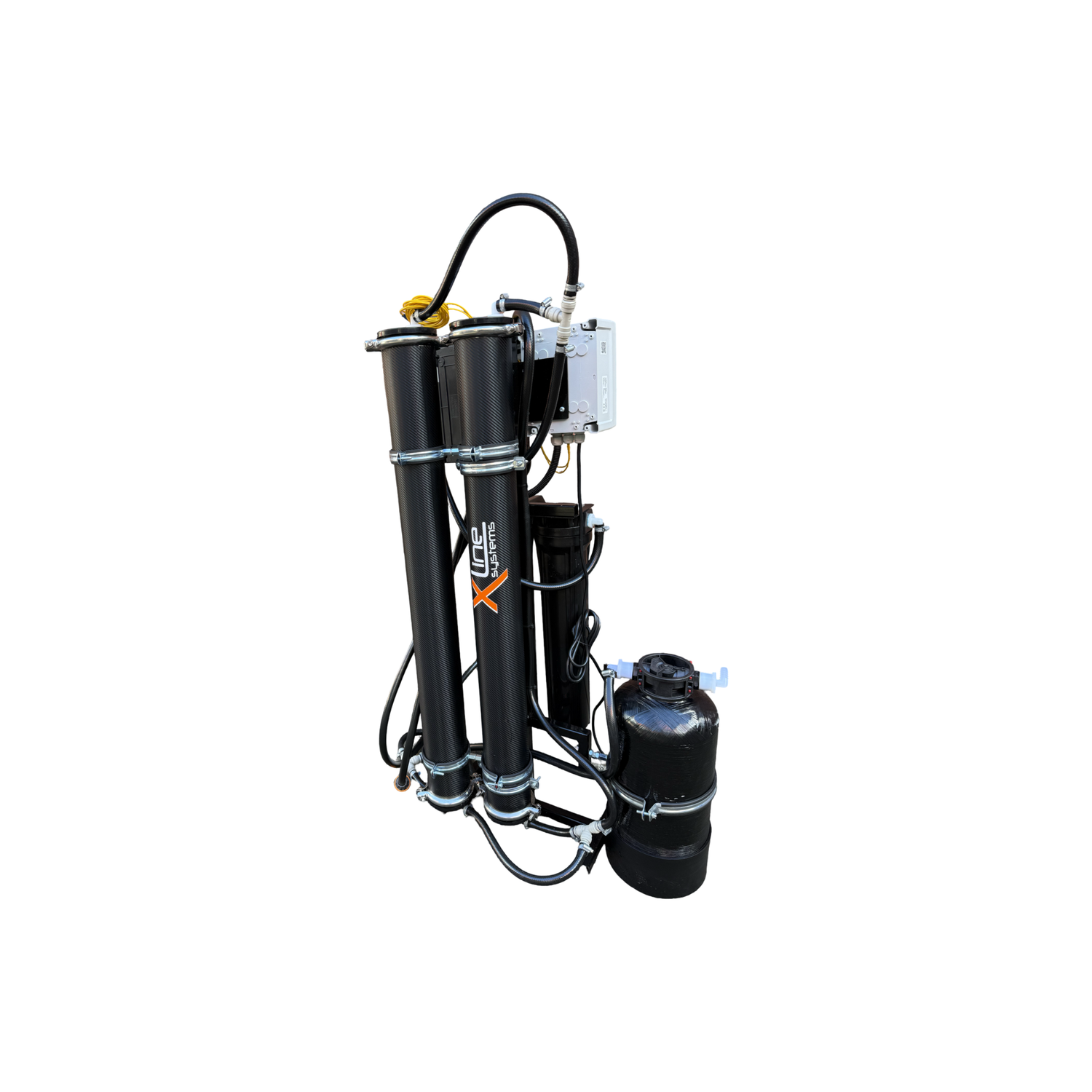

4,000 GPD Static AUTO Fill & Flush RO Filter System – Floor Standing

4,000 GPD Static AUTO Fill & Flush RO Filter System – Floor Standing

High-capacity automated pure water filtration system producing up to 4,000 gallons (18,000 litres) of pure water per day.
Designed for commercial window cleaning businesses and high-demand operations requiring fully automated, large-scale pure water production.

Fully Automated Pure Water Production

This advanced floor-standing 4-stage RO filtration system automates the entire purification process, providing reliable, hassle-free pure water production with minimal maintenance.

The automated system:

• Flushes RO membranes automatically at startup
• Performs automatic flush cycles every hour
• Detects water usage from your holding tank
• Automatically refills the tank when water levels drop
• Stops water production when the tank is full
• Automatically controls a compatible 240v booster pump

Always have pure water ready to use without manual operation.

Key Benefits

• Produces up to 4,000 GPD / 18,000 litres per day
• Automated fill and membrane flushing
• Intelligent auto-refill functionality
• Automatic tank shut-off protection
• Booster pump control compatibility
• Ideal for commercial and multi-vehicle use
• Reduces maintenance and downtime

System Features

• Floor-standing commercial filtration setup
• Automated fill & flush controller
• High-output low-pressure RO membranes
• DI polishing stage for pure water finishing
• Designed for continuous operation
• Suitable for garages, depots, and workshops

4-Stage Filtration Process

Stage 1 – Sediment Filtration

Removes dirt, rust, sand, and larger particles.

Stage 2 – Carbon Filtration

Removes chlorine, VOCs, and contaminants that can damage RO membranes.

Stage 3 – Reverse Osmosis Filtration

High-efficiency low-pressure RO membranes remove dissolved solids and impurities.

Stage 4 – DI Resin Polishing

Final DI stage removes remaining TDS for spotless pure water cleaning.

Water Pressure Requirements

• Recommended pressure: 60–90 PSI
• Low water pressure below 50 PSI may reduce performance
• Booster pump recommended where mains pressure is low

The integrated control system can automatically operate a compatible booster pump during production cycles.

Ideal For

• Commercial window cleaning companies
• Multi-vehicle fleet operations
• High-volume pure water production
• Workshop and depot installations
• Businesses requiring automated water systems

Low Maintenance & Efficient Operation

The automated membrane flushing system helps:

• Extend membrane lifespan
• Improve filtration efficiency
• Reduce manual maintenance
• Lower long-term operating costs

The intelligent refill system automatically maintains water levels, ensuring your pure water supply is always ready when needed.
