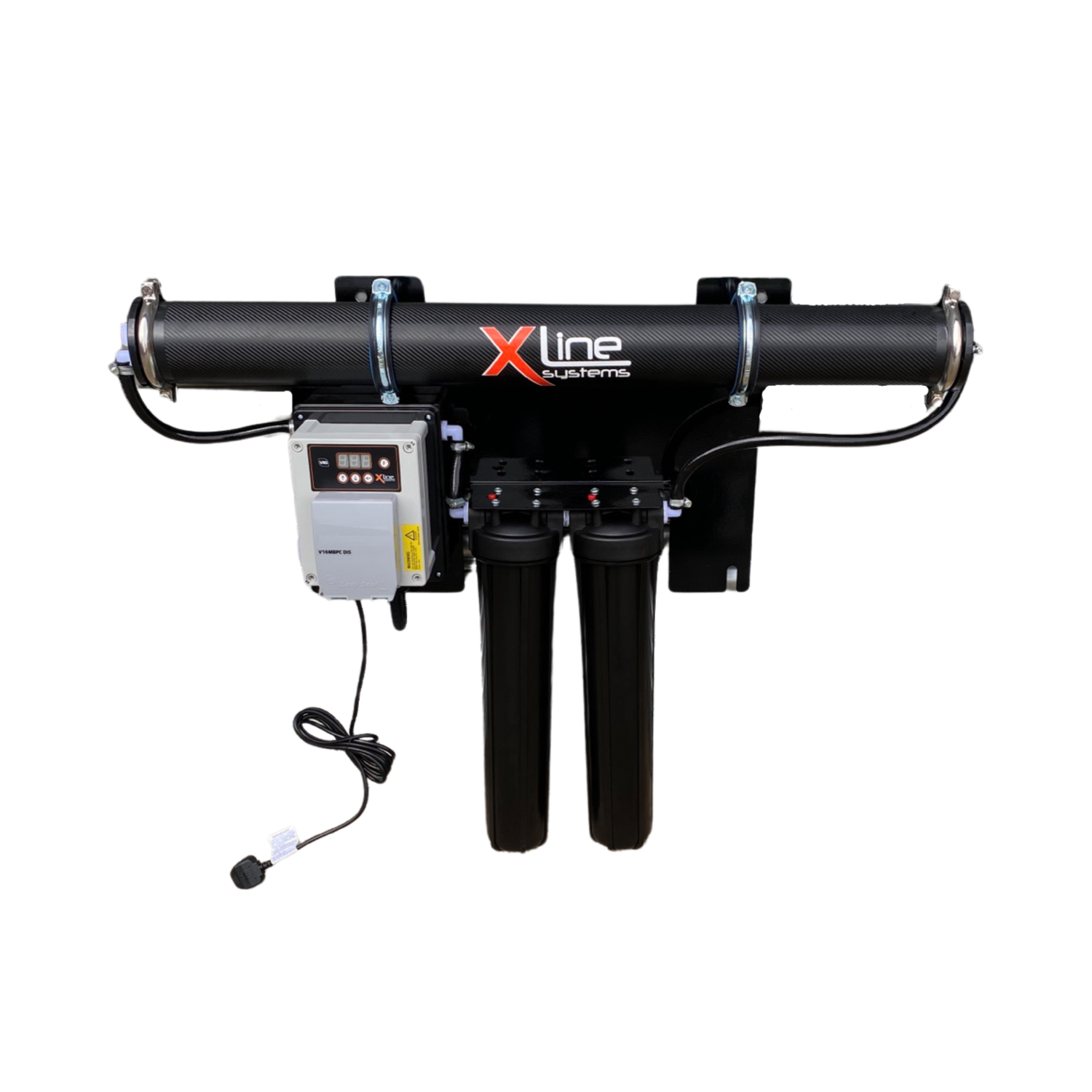

4,000 GPD Static AUTO Fill & Flush RO Filter System – Wall Mounted

4,000 GPD Static AUTO Fill & Flush RO Filter System – Wall Mounted

High-capacity automated pure water filtration system producing up to 4,000 gallons (18,000 litres) of pure water per day.
Designed for commercial window cleaning businesses and multi-vehicle operations requiring fully automated, high-volume pure water production.

Fully Automated Pure Water Production

This advanced wall-mounted 5-stage RO filtration system automates the entire water production process for maximum efficiency and minimal maintenance.

The system automatically:

• Flushes RO membranes at startup
• Performs automatic membrane flush cycles every hour
• Detects water usage from your holding tank
• Automatically refills the tank when required
• Stops water production when the tank is full
• Controls a compatible 240v booster pump automatically

Enjoy reliable pure water production without manual intervention.

Key Benefits

• Produces up to 4,000 GPD / 18,000 litres per day
• Fully automated fill and flush functionality
• Automatic tank refill detection
• Integrated booster pump control
• Reduced membrane maintenance
• High-output commercial-grade filtration
• Ideal for multi-vehicle and depot operations

System Includes

• 2 × 20” pre-filters in black housings
• 2 × 40” low-pressure RO membranes
• Carbon-wrapped membrane housings
• 1 × 11L DI resin vessel with quick-release ports
• Automated fill & flush controller
• Automatic booster pump control system

5-Stage Filtration Process

Stage 1 – Sediment Filtration

Removes dirt, sand, rust, and particles from the water supply.

Stage 2 – Carbon Filtration

Reduces chlorine, VOCs, pesticides, and contaminants that can affect membrane performance.

Stage 3 & 4 – Reverse Osmosis Filtration

Dual 40” low-pressure RO membranes provide ultra-efficient filtration with excellent TDS rejection rates.

Stage 5 – DI Resin Polishing

11L DI vessel removes remaining dissolved solids for spotless pure water cleaning.

Water Pressure Requirements

• Recommended operating pressure: 60–90 PSI
• Pressure below 50 PSI may reduce performance and increase fill times
• Booster pump recommended for low-pressure water supplies

The integrated control system can automatically operate a compatible booster pump during filtration cycles.

Ideal For

• Commercial window cleaning companies
• Multi-vehicle fleets
• High-demand pure water production
• Garage, workshop, and depot installations
• Businesses wanting fully automated filtration

Efficient & Low Maintenance

The automated membrane flush system helps:

• Extend membrane lifespan
• Maintain filtration efficiency
• Reduce maintenance requirements
• Lower long-term operating costs

With intelligent auto-refill functionality, your holding tank stays topped up automatically so pure water is always ready when you need it.
