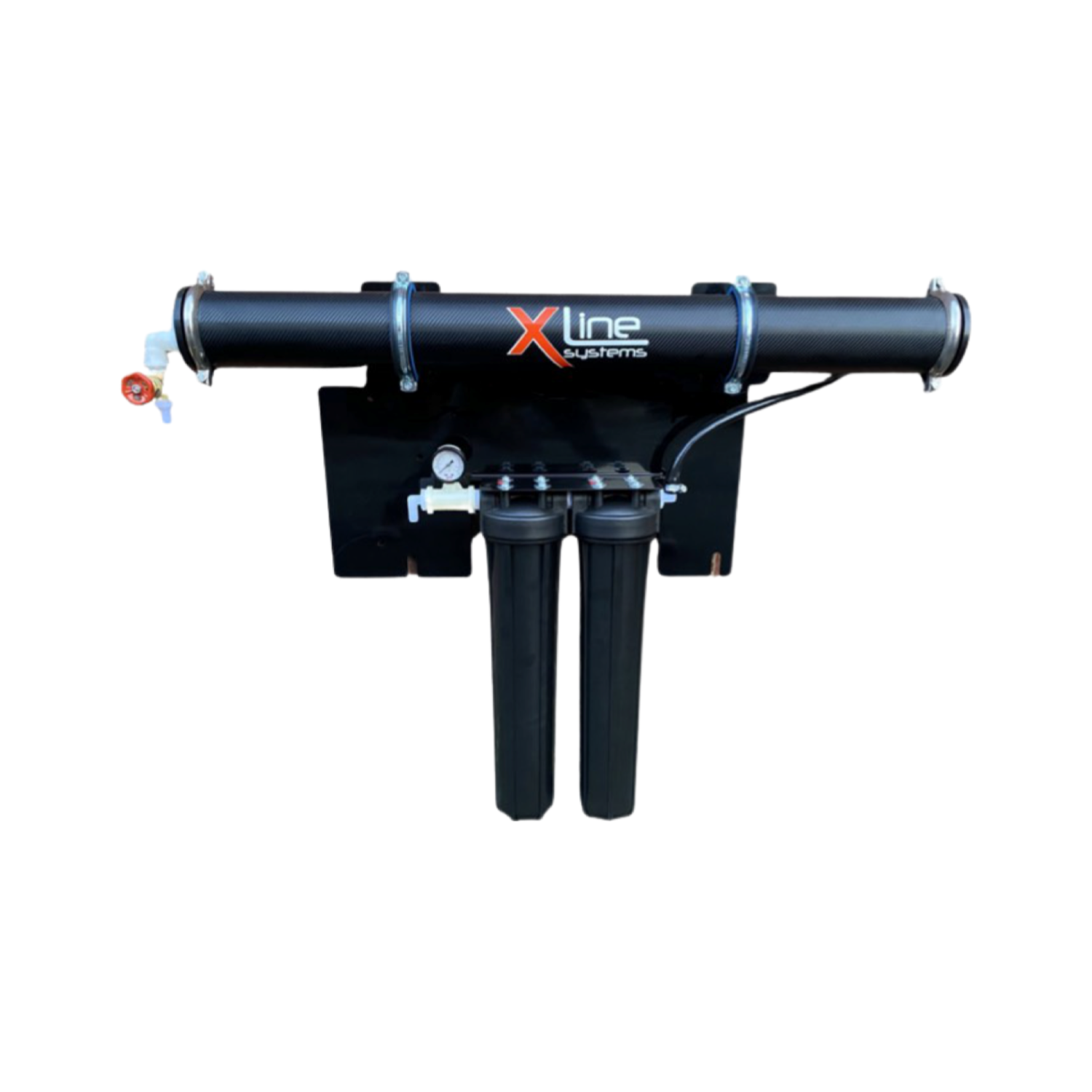

4,000 GPD Static Manual RO Pure Water System (Wall Mounted)

4,000 GPD Static Manual Pure Water RO System – Wall Mounted

High-output commercial reverse osmosis filtration system capable of producing up to 4,000 gallons (18,000 litres) of pure water per day.
Designed for professional window cleaning businesses and multi-vehicle operations requiring reliable, large-scale pure water production.

System Overview

This 4-stage static RO filtration system is built for continuous high-volume water production with low day-to-day maintenance. Mounted on a durable aluminium wall-mounted frame, it’s ideal for garages, workshops, depots, and commercial premises.

With production rates of approximately 350 litres per hour (depending on water pressure), this system is perfect for demanding commercial use.

Water Pressure Requirement

• Minimum required pressure: 60 PSI
• Recommended operating pressure: 60–90 PSI
• Low pressure below 50 PSI may reduce output and damage membranes
• Booster pump recommended for low-pressure water supplies

Key Benefits

• Produces up to 18,000 litres / 4,000 gallons per day
• High-efficiency commercial-grade RO filtration
• Ideal for multi-vehicle fleets and large operations
• Low maintenance and economical running costs
• Wall-mounted design saves floor space
• Continuous production for high-demand users

Included Components

• Aluminium wall-mount supporting frame
• 2 × 20” pre-filter housings
• 2 × 40” low-pressure RO membranes
• 1 × 11L DI resin vessel with quick-release ports
• Pressure gauge
• Gate valve / waste flush valve

4-Stage Filtration Process

Stage 1 – Sediment Filtration

Removes dirt, rust, sand, and particles using a 20” polypropylene sediment filter.

Stage 2 – Carbon Filtration

High-performance carbon block removes chlorine, VOCs, pesticides, and contaminants.

Stage 3 – Reverse Osmosis

Dual 40” SRO-4040 membranes provide ultra-efficient filtration with up to 99% rejection rates.

Stage 4 – DI Resin Polishing

11L DI vessel removes remaining TDS for spotless pure water cleaning.

Commercial Performance

• Approx. 350L per hour production rate
• Designed for continuous operation
• Ideal for centralised pure water production
• Supports multiple vans from one system
• Allows smaller vehicle tank setups with refill capability

Low Running Costs

• Approximate annual maintenance costs under €300
• Pre-filters typically replaced every 3–4 months
• RO membranes typically last 3–5 years
• DI resin changed as required based on TDS readings

Ideal For

• Professional window cleaning companies
• Fleet and depot operations
• Commercial cleaning businesses
• Static garage or workshop installations
• High daily water usage environments
