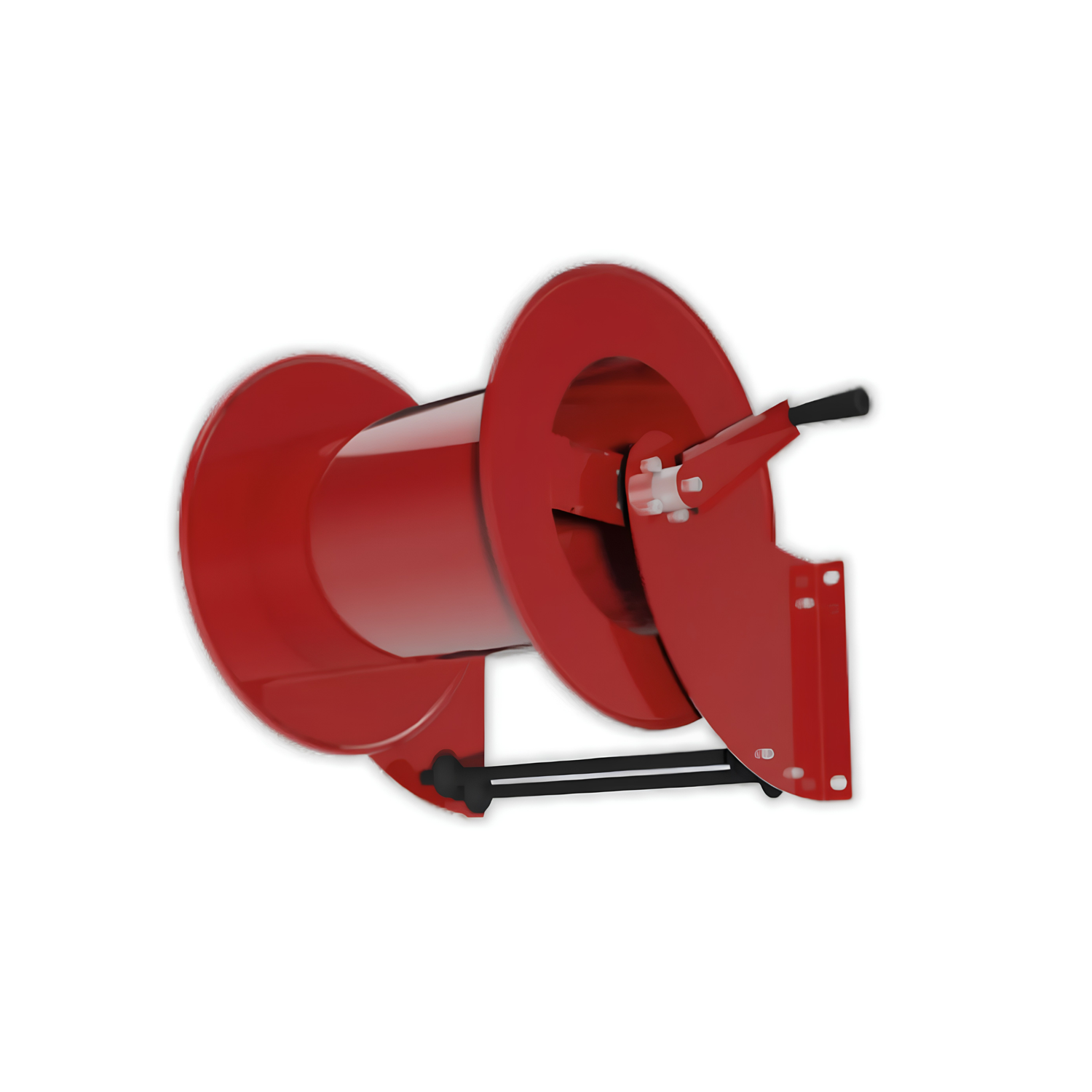

Manual Rewind Hose Reel – Powder Coated Steel

Heavy-duty Flexbimec manual rewind hose reel, manufactured from robust steel and finished with a durable powder coating for excellent protection and long-term reliability.

Designed for demanding industrial, agricultural and workshop applications, this versatile hose reel can be used for water, diesel, oil and other compatible fluids when fitted with the correct hose for the application.

The reel can accommodate up to 25 metres of 1" hose or 30 metres of 3/4" hose, making it an excellent option for high-flow fluid transfer applications.

Key Features

• Heavy-duty powder-coated steel construction
• Manual hand crank rewind
• 1" BSP inlet
• 90° inlet swivel
• 1" BSP outlet swan neck
• Maximum working pressure: 100 Bar
• Maximum temperature: 60°C
• Heavy-duty hose roller guides
• Fixed-arm design
• Sturdy mounting back plate
• Suitable for wall or floor mounting
• Capacity for up to 25 metres of 1" hose
• Capacity for up to 30 metres of 3/4" hose
• Suitable for a range of fluid transfer applications

Heavy-Duty Manual Rewind Hose Reel

The Flexbimec manual hose reel provides a simple and reliable solution for storing and managing large-diameter hoses.

A robust manual hand crank allows the hose to be quickly and neatly rewound onto the drum after use. The manual mechanism offers excellent reliability with fewer moving components, making it particularly suitable for demanding professional applications.

Four heavy-duty hose roller guides help the hose feed smoothly on and off the reel while reducing unnecessary wear, twisting and tangling.

Powder-Coated Steel Construction

Manufactured from heavy-duty steel and protected with a durable powder-coated finish, the reel is designed to withstand regular use in agricultural, industrial and commercial environments.

The robust construction provides the strength required for large-diameter hoses while the protective coating helps resist corrosion and everyday wear.

High-Flow 1" Connections

The reel features a 1" BSP inlet with a 90-degree swivel and a 1" BSP outlet swan neck, making it particularly suitable for high-flow fluid transfer applications.

The swivel allows the reel drum to rotate freely while maintaining the fluid connection, while the large 1" inlet and outlet help minimise unnecessary flow restrictions.

Hose Capacity

Depending on the hose diameter required, the reel can accommodate:

• Up to 25 metres of 1" hose
• Up to 30 metres of 3/4" hose

This provides flexibility when configuring the reel for different flow requirements and working areas.

Suitable for Multiple Fluids

When fitted with the correct compatible hose and seals, the reel can be configured for use with a variety of fluids, including:

• Water
• Diesel
• HVO
• Oil
• Kerosene
• Other compatible non-corrosive water-based fluids

Important: The hose, seals and other wetted components must be suitable for the specific fluid, pressure and operating temperature of the application.

Wall or Floor Mounting

The heavy-duty mounting plate features pre-drilled fixing points, allowing the reel to be securely installed on either a wall or floor.

The fixed-arm design and four hose roller guides provide smooth hose deployment and rewind regardless of the chosen mounting position.

Ideal For

• Industrial fluid transfer
• Agricultural applications
• Workshops and garages
• Machinery and equipment servicing
• Water transfer systems
• Diesel and HVO transfer
• Oil and lubricant transfer
• Commercial and industrial facilities
