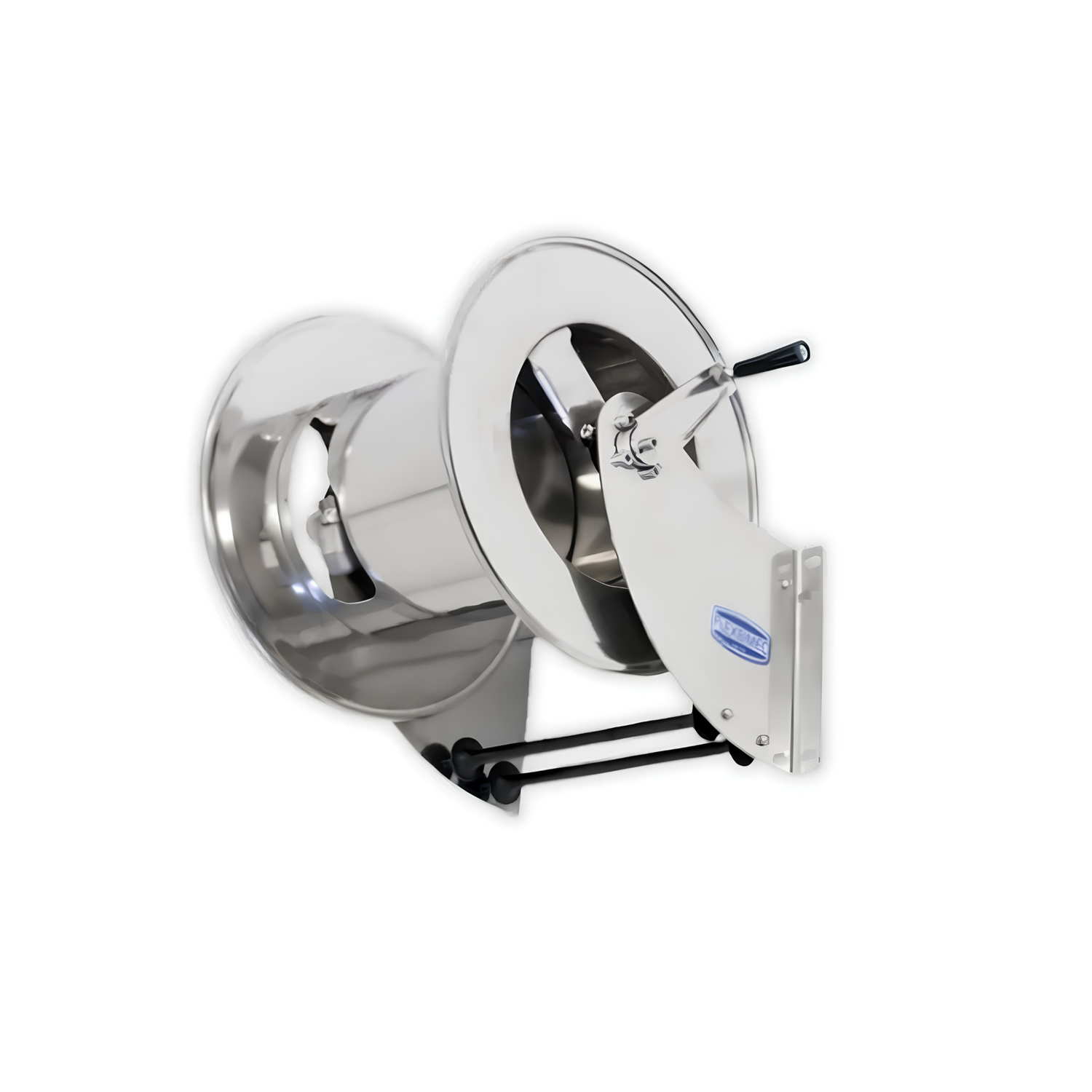

Stainless Steel Manual Rewind Hose Reel – AISI 304

Heavy-duty Flexbimec manual rewind hose reel, manufactured entirely from high-grade AISI 304 stainless steel for excellent corrosion resistance, strength and long-term durability.

Designed for demanding industrial, agricultural and workshop applications, this versatile reel can be used with a wide range of liquids when fitted with the appropriate compatible hose, including water, diesel, HVO, oil, kerosene, AdBlue, antifreeze and other water-based liquids.

The reel can accommodate up to 25 metres of 1" hose or 30 metres of 3/4" hose, making it an excellent choice for high-flow fluid transfer applications.

Key Features

• High-grade AISI 304 stainless steel construction
• Heavy-duty manual hand rewind
• Maximum working pressure: 100 Bar
• Maximum temperature: 100°C
• 1" BSP inlet
• 90° inlet swivel
• 1" BSP outlet swan neck
• Heavy-duty hose roller guides
• Fixed-arm design
• Heavy-duty mounting plate
• Suitable for wall or floor mounting
• Capacity for up to 25 metres of 1" hose
• Capacity for up to 30 metres of 3/4" hose
• Suitable for a wide range of fluid transfer applications

Heavy-Duty Stainless Steel Construction

Manufactured from premium AISI 304 stainless steel, this Flexbimec hose reel is designed for long-term professional use in demanding environments.

The stainless steel construction provides excellent resistance to corrosion, moisture and harsh working conditions, making it particularly suitable for agricultural, industrial, commercial and workshop installations.

Its heavy-duty construction also makes it an excellent option for applications where reliability and long service life are essential.

Manual Hand Rewind

The reel features a robust manual hand crank for quickly and neatly rewinding the hose onto the drum after use.

The simple manual rewind design provides a reliable solution with fewer moving components than an automatic spring reel, making it particularly well suited to demanding professional applications.

Heavy-duty hose roller guides help the hose feed smoothly on and off the reel while reducing unnecessary wear and helping to prevent the hose from twisting or becoming tangled.

High-Flow 1" Connections

The reel features a 1" BSP inlet with a 90-degree swivel and a 1" BSP outlet swan neck, making it suitable for high-flow fluid transfer applications.

The swivel inlet allows the drum to rotate freely while maintaining the fluid connection, while the large 1" connections help minimise unnecessary flow restrictions.

Hose Capacity

The reel can accommodate different hose diameters depending on the required application:

• Up to 25 metres of 1" hose
• Up to 30 metres of 3/4" hose

This allows the reel to be configured to suit different flow requirements and installation sizes.

Suitable for Multiple Liquids

When fitted with the correct compatible hose and seals for the liquid being transferred, the reel can be used for a wide range of applications, including:

• Water
• Diesel
• HVO
• Oil
• Kerosene
• AdBlue
• Antifreeze
• Other compatible water-based liquids

Important: Hose, seals and other wetted components must always be selected to suit the specific liquid, operating pressure and temperature of the application.

Wall or Floor Mounting

A heavy-duty stainless steel backing plate allows the reel to be securely installed on either a wall or floor.

The fixed-arm design and integrated hose roller guides allow the reel to be positioned to suit the installation while providing smooth hose deployment and rewind.

Ideal For

• Industrial fluid transfer
• Agricultural applications
• Workshops and garages
• Machinery and equipment servicing
• Water transfer and washdown systems
• Diesel and HVO transfer
• Oil transfer systems
• AdBlue dispensing systems
• Commercial and industrial facilities
